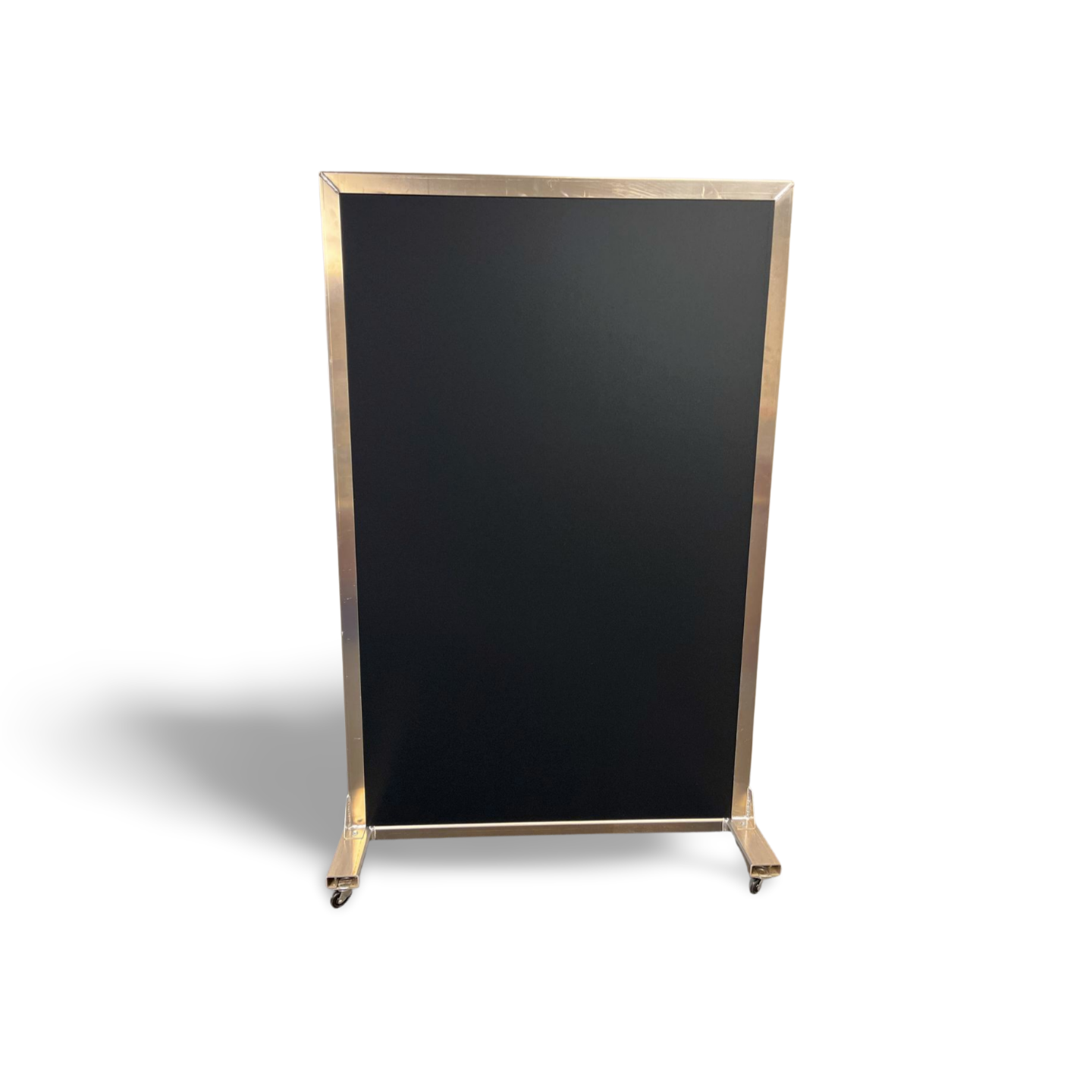

ECHOTROL™ Portable Acoustic Panel

ECHOTROL™ PORTABLE ACOUSTIC PANELS offer excellent sound absorption characteristics in a number of architectural finishes. These attributes enable them to be utilized in virtually any interior environment requiring sound quality improvements. The portable nature of these panels makes them highly versatile for room reconfiguration. They work well with 21st century learning design in education, and the need to adjust acoustics within the recording and entertainment industries. These panels can also be used as office dividers for open concept offices. Each panel consists of rigid high-density and formaldehyde-free acoustical fiberglass. Finishes include fire-rated acoustical fabrics in a variety of colors and textures.

Echotrol™ Portable Acoustic Panels: The Ultimate in Mobile Acoustic Solutions

In today's dynamic world, the need for adaptable acoustic solutions is ever-growing. Echotrol™ Portable Acoustic Panels are the answer to this demand, offering unparalleled sound absorption in a mobile design.

Key Features of Echotrol™ Portable Acoustic Panels:

  • Highly Versatile: Whether you're reconfiguring a classroom, setting up a recording studio, or dividing an open-concept office, these panels adapt to your needs.

  • Premium Finishes: Choose from fire-rated acoustical fabrics in a myriad of colors and textures to match your aesthetic preferences.

  • Robust Construction: Made from rigid, high-density, and formaldehyde-free acoustical fiberglass, these panels promise durability and performance.

  • Customizable Design: With options for unfinished aluminum, powder-coated aluminum, and tackable or non-tackable surfaces, you can tailor the panels to your specific requirements.

Echotrol™ Portable Acoustic Panels are more than just mobile sound barriers; they are a testament to innovative design and acoustic engineering. Experience the freedom to adjust your space's acoustics whenever and wherever you need.

  • Free Standing

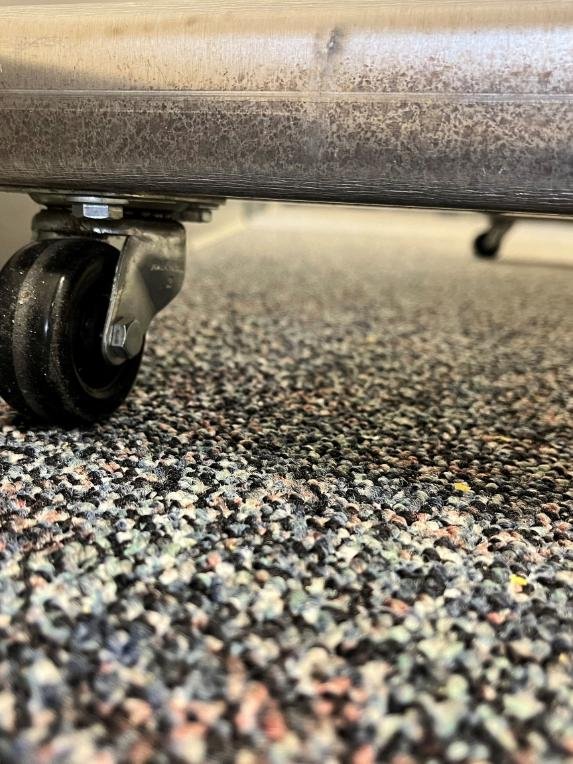

    All panels are free standing and fully moveable. Installation is not permanent. Wheels can be locked to prevent the panels from moving when they are in their desired location.

  • Education Sector: Libraries, Learning Commons, Break Out Rooms, Music Rooms, Etc.

    Office/Workplace Sector: Offices, Boardrooms, Lunch Rooms, Meeting Rooms, Open Office Areas, Etc.

    Entertainment Sector: Theatres, Recording Studios, Performance Spaces, Community Halls, Bars & Restaurants, Etc.

DOWNLOADS:

Brochure

Acoustical Performance

NRC RATING

NOISE REDUCTION COEFFICENT

Noise Reduction Coefficient (NRC) is calculated by averaging the sound absorption coefficients of a material at four frequencies (250 Hz, 500 Hz, 1000 Hz, and 2000 Hz) as measured in a reverberation room according to ASTM C423 standards.

Echotrol NRC Data - Panels 2
Frequency (Hz)
Metric
Imperial
125
250
500
1000
2000
4000
NRC
50mm 2"
0.29
0.98
1.09
0.96
1.01
0.97
1.0

fire rating/flammability

Flammability

ASTM E-84

Class 1 or A

NFPA-701

Passes

Boston Fire Code BFD 1X-1

Passes

State of Ca. CS-191-53

Passes

GSA-PBS

Passes

UL Test #214

Passes

CAN / ULC - S102

Passes


Fire Rating

Finish Options

  • Unfinished Aluminum

  • Powder Coated Aluminum

  • Tackable or Non-Tackable Surface

Size & shape Options

76” high x 48” wide x 20” total depth - Custom sizes may be available upon request.

Separate colours may be selected for each side of the panel for no additional cost.

fabric Options

Cleaning & Care Instructions


Normal surface dust and dirt can be removed from the fabric by vacuuming with a horsehair duster brush attachment. If vacuuming does not clean the fabric, lightly dab the fabric with a slightly damp cloth. Use a white cotton cloth and water mixed with a mild detergent. Squeeze as much of the water out of the cloth as possible before dabbing to avoid saturating the fabric with water.

DO NOT use excess pressure to scrub the fabric.
