ECHOTROL™ ACOUSTIC ceiling PANELS
Echotrol™ Ceiling Panels are the gold standard in acoustic management, meticulously crafted to elevate sound quality in a variety of settings, from offices and educational institutions to bustling public areas. These panels excel at absorbing and dampening sound, effectively reducing unwanted noise and echoes, and resulting in clearer and more precise communication.
Key Highlights:
Efficient Sound Control: Echotrol™ Ceiling Panels are experts at reducing noise and echo, enhancing the acoustic environment in any space. This promotes better concentration, communication, and overall comfort.
Simplified Installation and Minimal Maintenance: Designed for user-friendly installation and low upkeep, these panels seamlessly integrate into various ceiling systems. They are equally well-suited for new construction and renovation projects, offering practicality and convenience.

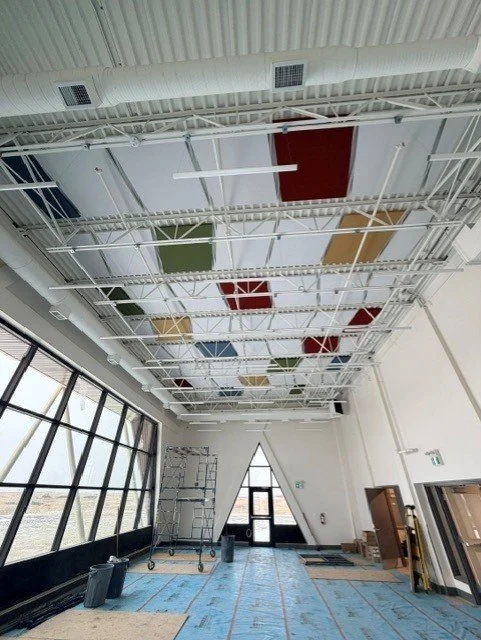

Customizable Aesthetics: With an extensive range of colors and finishes, Echotrol™ Ceiling Panels not only enhance acoustics but also infuse sophistication into any room. Their versatile design ensures they harmonize seamlessly with different architectural styles, allowing for tailored aesthetic solutions.
Sustainability and Safety: We take environmental responsibility and safety seriously. Echotrol™ Ceiling Panels are constructed from eco-friendly materials and are fire-resistant, meeting stringent environmental and safety standards.
Echotrol™ Ceiling Panels strike a harmonious balance between functionality, style, and environmental consciousness. Whether you're seeking effective sound management or wish to add a touch of sophistication to your space, these panels are the superior choice.
-
Education Sector: Gymnasiums, Libraries, Learning Commons, Break Out Rooms, Classrooms, CTS Shops, Auditoriums, Hallways, Corridors, Music Rooms, Cafeterias, Etc.
Recreation Sector: Gymnasiums, Pools, Fitness Studios, Arenas, Curling Rinks, Etc.

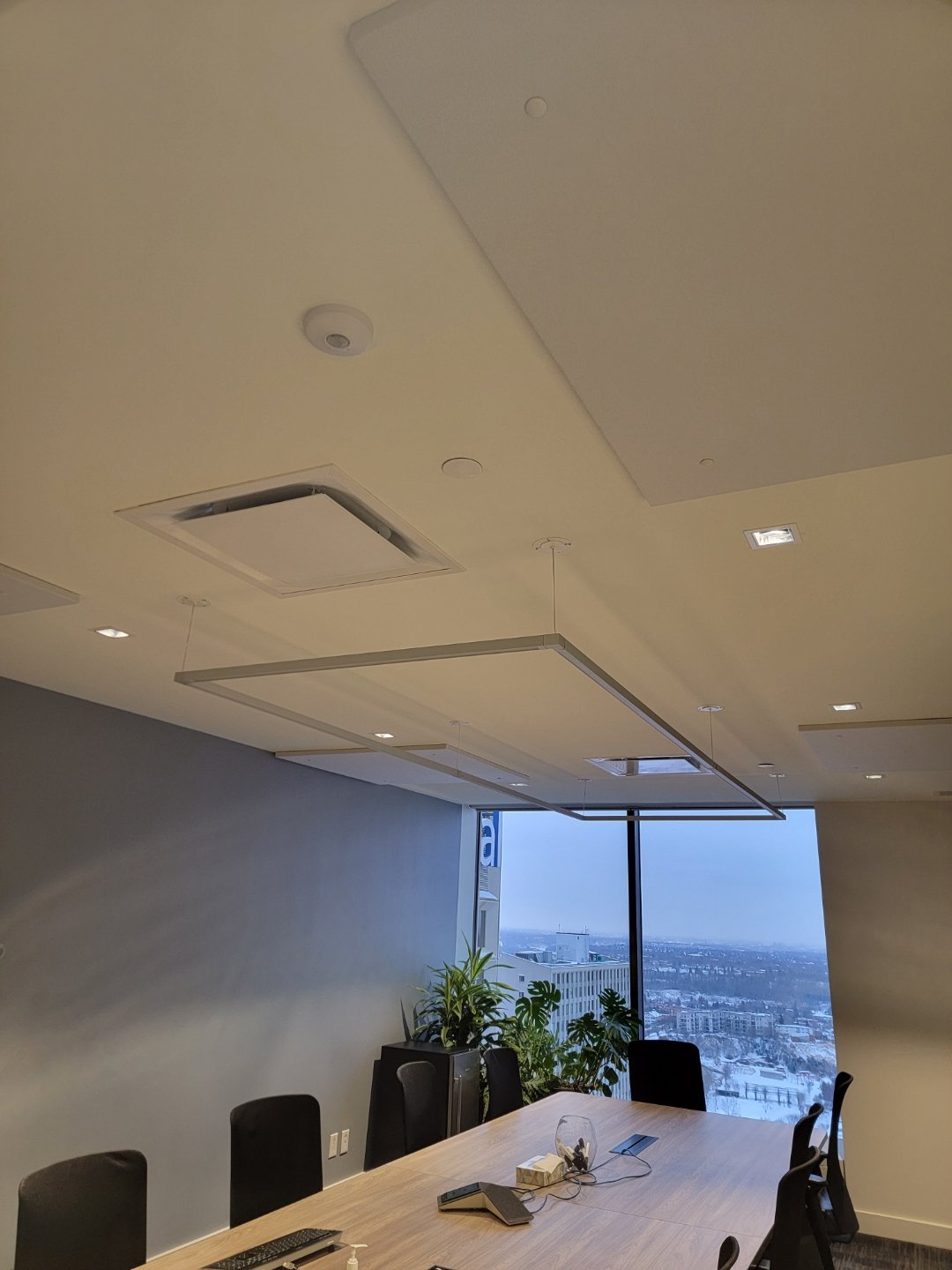

Office/Workplace Sector: Offices, Boardrooms, Lunch Rooms, Meeting Rooms, Open Office Areas, Etc.
Entertainment Sector: Theatres, Movie Theatres, Recording Studios, Performance Spaces, Community Halls, Bars & Restaurants, Etc.

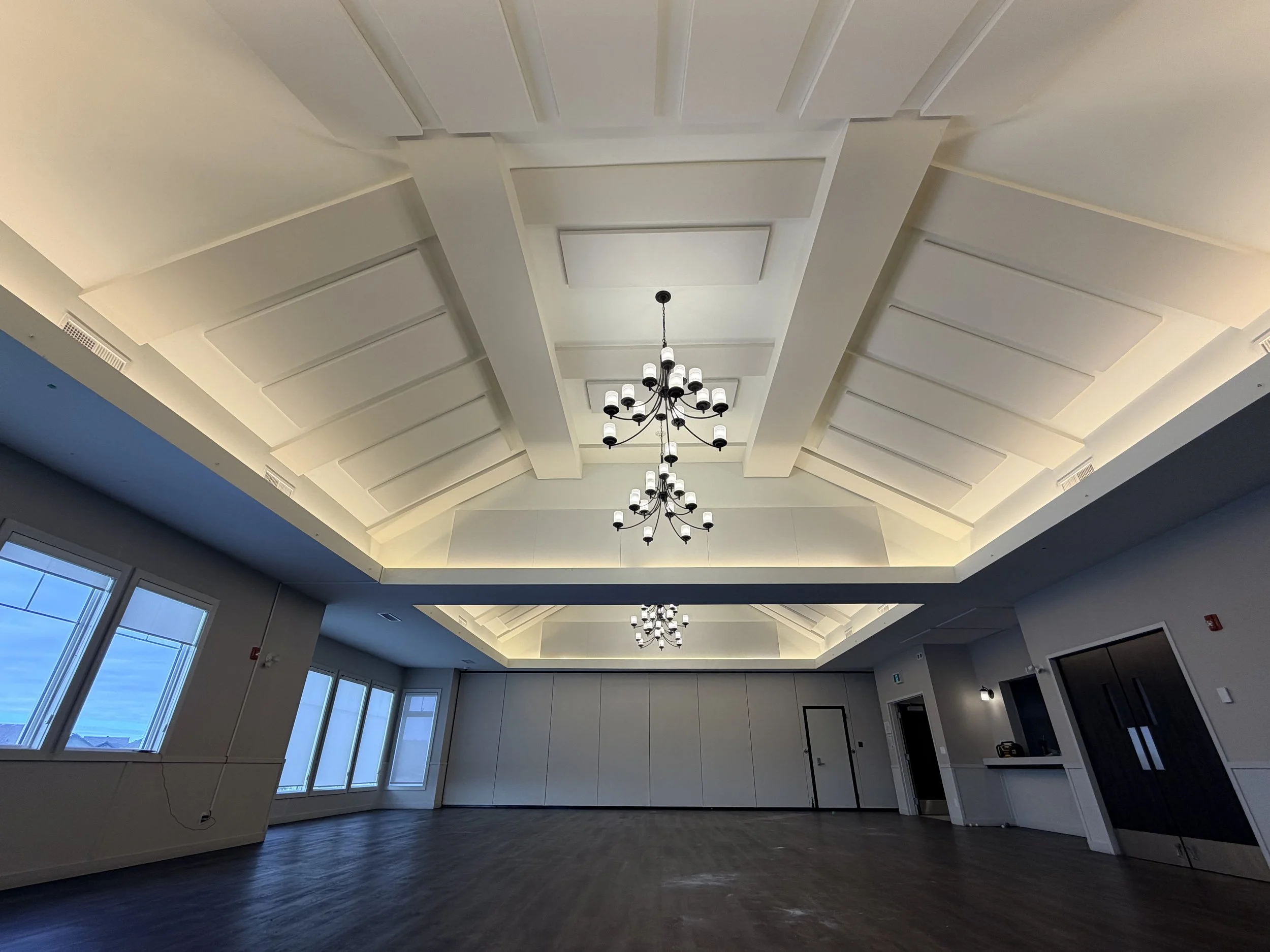

Places of Worship: Churches, Mosques, Retreat Centres, Synagogues, Fellowship Halls, Etc.
Industrial Sector: Mechanical Rooms, Warehouses, Factories
-
In construction specifications, the information is organized into divisions that detail requirements for different construction elements. Division 9 specifically pertains to "Finishes." Within Division 9, you would typically find specifications related to various finishing materials and methods, such as painting, plastering, and flooring.
Acoustic panels, being a part of interior finishes, would typically be found under Division 9. More specifically, they might be located under a subsection dedicated to "Acoustical Ceilings" or "Acoustical Wall Treatments." The exact section number or title might vary depending on the specific format or version of the specification being used, but it's common to find them under a title like "09 80 00 - Acoustic Treatment" or a similar designation.
Within this section or subsection, you would find detailed specifications for the acoustic panels, including material descriptions, installation methods, performance criteria (like Noise Reduction Coefficient ratings), and other relevant details.
If you're working with a specific set of construction specifications or a particular format, it's always a good idea to consult the table of contents or index to locate the exact section where acoustic panels are detailed.
DOWNLOADS:
Brochure
Specification
LEED Declaration
Acoustical Performance
NRC RATING
NOISE REDUCTION COEFFICENT
Noise Reduction Coefficient (NRC) is calculated by averaging the sound absorption coefficients of a material at four frequencies (250 Hz, 500 Hz, 1000 Hz, and 2000 Hz) as measured in a reverberation room according to ASTM C423 standards.
|
Frequency (Hz)
|
||||||||
| Metric |
Imperial |
125 |
250 |
500 |
1000 |
2000 |
4000 |
NRC |
| 25mm |
1" |
0.11 |
0.24 |
0.73 |
1.03 |
1.10 |
0.87 |
0.80 |
| 50mm | 2" |
0.29 |
0.98 |
1.09 |
0.96 |
1.01 |
0.97 |
1.0 |
fire rating/flammability
|
ASTM E-84 |
Class 1 or A |
|
NFPA-701 |
Passes |
|
Boston Fire Code BFD 1X-1 |
Passes |
|
State of Ca. CS-191-53 |
Passes |
|
GSA-PBS |
Passes |
|
UL Test #214 |
Passes |
|
CAN / ULC - S102 |
Passes |
Size & shape Options
Panels are available in configurations within a 4’x10’ grid. (1220mm x 3050mm)
Echotrol™ SHAPES options are also available. This includes but is not limited to triangles, trapezoids, circles, and hexagons.
fabric Options
Cleaning & Care Instructions
Normal surface dust and dirt can be removed from the fabric by vacuuming with a horsehair duster brush attachment. If vacuuming does not clean the fabric, lightly dab the fabric with a slightly damp cloth. Use a white cotton cloth and water mixed with a mild detergent. Squeeze as much of the water out of the cloth as possible before dabbing to avoid saturating the fabric with water.
DO NOT use excess pressure to scrub the fabric.
