ECHOTROL™ ACOUSTIC Baffles - Standard

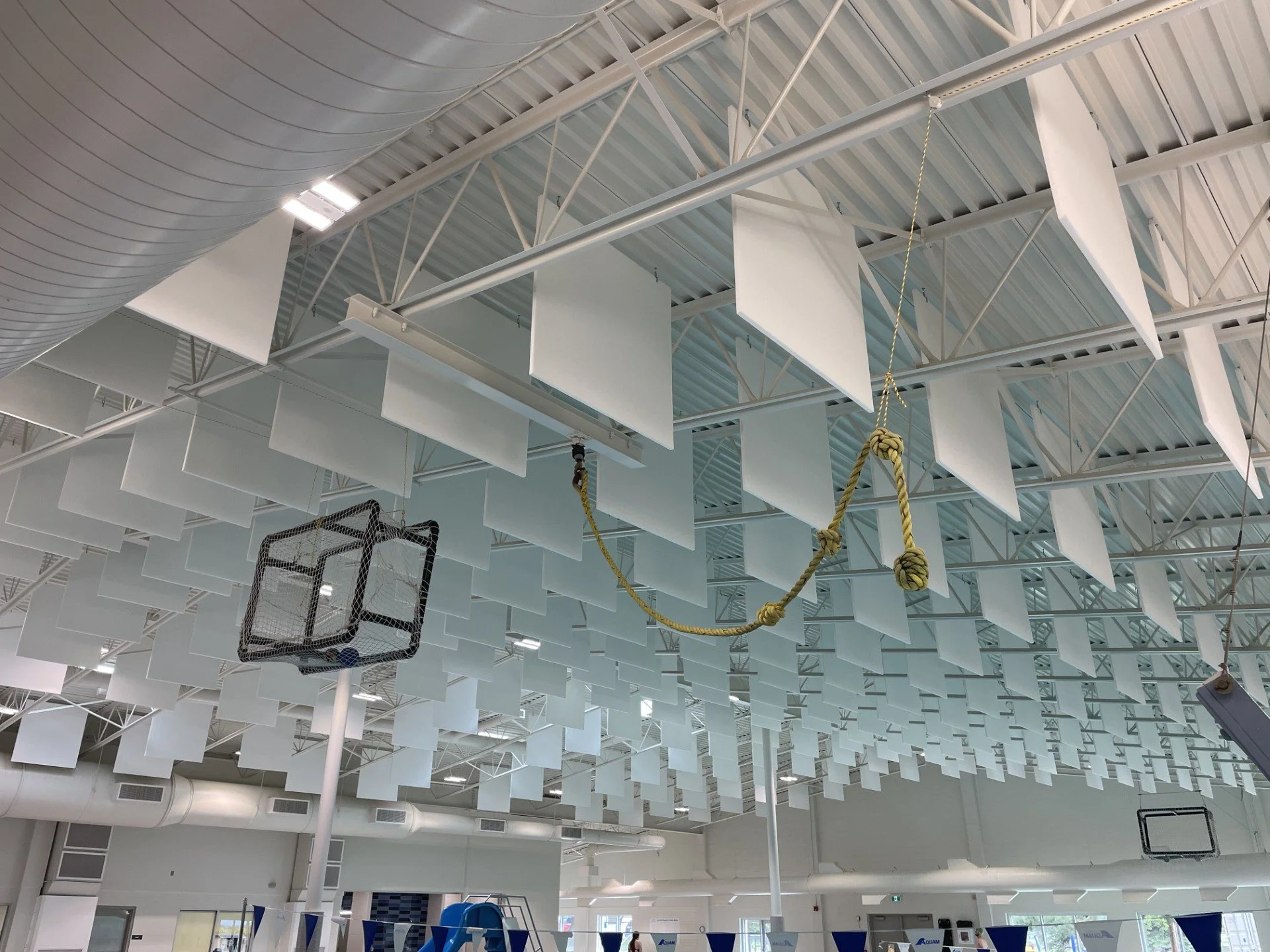

Echotrol™ Baffles offer a cost-effective acoustic management solution, specially designed to cater to the needs of expansive areas such as pools, gymnasiums, and arenas. These baffles deliver remarkable acoustic performance, effectively absorbing and dampening sound to reduce noise and echo, resulting in enhanced communication clarity.
Key Features:
Superb Acoustic Control: Echotrol™ Baffles excel in large spaces, efficiently minimizing noise and echo to improve acoustic quality. This is vital for fostering an environment where communication and concentration can thrive.
Affordable Excellence: Combining high acoustic performance with affordability, these baffles present a practical choice for both new construction and renovation projects. They offer superior sound management without straining your budget.
Customized Aesthetics: Available in a diverse array of colors and finishes, Echotrol™ Baffles not only excel in acoustic management but also enhance the visual appeal of any setting. Their design flexibility allows them to adapt seamlessly to various architectural styles, enabling customized aesthetic alignment with the overall design.
Sustainability and Safety: Our commitment to sustainability and safety is unwavering. Echotrol™ Baffles are constructed using eco-friendly materials and adhere to fire safety standards, ensuring that their environmental responsibility does not compromise their acoustic efficacy.
Echotrol™ Baffles provide a harmonious balance of cost-efficiency, high acoustic performance, and style for managing sound in large and bustling environments. Whether you require effective sound management on a budget or seek to enhance both acoustics and aesthetics, these baffles are the perfect choice.
-
Education Sector: Gymnasiums, Libraries, Learning Commons, Break Out Rooms, Classrooms, CTS Shops, Auditoriums, Hallways, Corridors, Music Rooms, Cafeterias, Etc.
Recreation Sector: Gymnasiums, Pools, Fitness Studios, Arenas, Curling Rinks, Etc.
Office/Workplace Sector: Offices, Boardrooms, Lunch Rooms, Meeting Rooms, Open Office Areas, Etc.
Entertainment Sector: Theatres, Movie Theatres, Recording Studios, Performance Spaces, Community Halls, Bars & Restaurants, Etc.
Places of Worship: Churches, Mosques, Retreat Centres, Synagogues, Fellowship Halls, Etc.
Industrial Sector: Mechanical Rooms, Warehouses, Factories
-
In construction specifications, the information is organized into divisions that detail requirements for different construction elements. Division 9 specifically pertains to "Finishes." Within Division 9, you would typically find specifications related to various finishing materials and methods, such as painting, plastering, and flooring.
Acoustic baffles, being a part of interior finishes, would typically be found under Division 9. More specifically, they might be located under a subsection dedicated to "Acoustical Ceilings" or "Acoustical Treatments." The exact section number or title might vary depending on the specific format or version of the specification being used, but it's common to find them under a title like "09 80 00 - Acoustic Treatment" or a similar designation.
Within this section or subsection, you would find detailed specifications for the acoustic baffles, including material descriptions, installation methods, performance criteria (like Noise Reduction Coefficient ratings), and other relevant details.
If you're working with a specific set of construction specifications or a particular format, it's always a good idea to consult the table of contents or index to locate the exact section where acoustic baffles are detailed.
DOWNLOADS:
Brochure
Specification
LEED Declaration
Unparalleled Acoustic Baffles for Modern Spaces
In the realm of acoustic solutions, Echotrol™ Acoustic Baffles stand out as a beacon of excellence. Designed by Western Noise Control, these baffles are the epitome of sound absorption mastery.
Why Echotrol™ Acoustic Baffles are a Game-Changer:
Superior Sound Absorption: Dive into a serene environment as our baffles effectively minimize noise disruptions, offering a peaceful ambiance.
High-Quality Materials: Made from rigid, high-density, and formaldehyde-free acoustical fiberglass, our baffles promise durability and performance.
Architectural Aesthetics: With fire-rated acoustical fabrics available in diverse colors and textures, these baffles are not just functional but also visually appealing.
Versatile Installations: Whether it's an office, a studio, or a public space, Echotrol™ Acoustic Baffles seamlessly fit into any interior setting, enhancing its acoustic quality.
Experience Acoustic Perfection
Echotrol™ Acoustic Baffles are more than just sound absorbers; they are a testament to innovative design and engineering. Their flexibility allows for unique installations, creating abstract patterns that are both functional and aesthetically pleasing. Elevate your space's acoustic and visual appeal with Echotrol™ Acoustic Baffles. Embrace the fusion of design, functionality, and unmatched sound absorption.
Acoustical Performance
NRC RATING
NOISE REDUCTION COEFFICENT
Noise Reduction Coefficient (NRC) is calculated by averaging the sound absorption coefficients of a material at four frequencies (250 Hz, 500 Hz, 1000 Hz, and 2000 Hz) as measured in a reverberation room according to ASTM C423 standards.
|
Frequency (Hz)
|
||||||||
| Density |
125 |
250 |
500 |
1000 |
2000 |
4000 |
NRC |
|
| 2.5PCF |
ASTM* |
0.22 |
0.45 |
0.79 |
0.93 |
0.96 |
0.96 |
0.80 |
| 2.5PCF | Industry** | 0.44 |
0.90 |
1.58 |
1.86 |
1.93 |
1.91 |
1.57 |
| 3.0PCF | ASTM* | 0.33 |
0.67 |
1.07 |
1.07 |
1.03 |
1.06 |
0.95 |
| 3.0PCF | Industry** | 0.66 |
1.34 |
2.14 |
2.14 |
2.06 |
2.12 |
1.92 |
| *ASTM Reporting Protocol Reports **Common Industry Reporting Protocol That Adds the Absorption From Both Sides of the Baffle Together |
||||||||
fire rating/flammability
|
ASTM E-84 |
Class 1 or A |
|
NFPA-701 |
Passes |
|
Boston Fire Code BFD 1X-1 |
Passes |
|
State of Ca. CS-191-53 |
Passes |
|
GSA-PBS |
Passes |
|
UL Test #214 |
Passes |
|
CAN / ULC - S102 |
Passes |
Size & shape Options
Baffles are available in configurations within a 4’x8’ grid. (1220mm x 2400mm)
Standard Edge (not hard edge)
fabric Options
Cleaning & Care Instructions
Normal surface dust and dirt can be removed from the fabric by vacuuming with a horsehair duster brush attachment. If vacuuming does not clean the fabric, lightly dab the fabric with a slightly damp cloth. Use a white cotton cloth and water mixed with a mild detergent. Squeeze as much of the water out of the cloth as possible before dabbing to avoid saturating the fabric with water.
DO NOT use excess pressure to scrub the fabric.
